Product Drawings

Your location： Home > Product > Product Drawings

Classify

2025-05-09

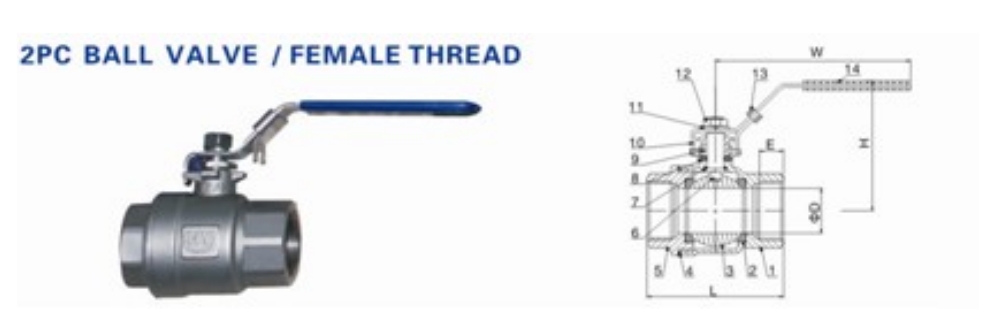

G	DN	D	L	W	E	H	SW	UNIT WEIGHT
1/4″	8	9.2	46	82	10	47	19	0.17
3/8″	10	12.5	52	82	10	51	22	0.22
1/2″	15	15	59	100	13.5	56	26	0.3
3/4″	20	20	65	100	14.5	58.5	31	0.38
1″	25	25	76	148	17	74	38	0.61
1-1/4″	32	32	90	148	19	79	48	0.98
1-1/2″	40	38	101.5	190	19	92	54	1.59
2″	50	50	120.5	190	23	103	68	2.58
2-1/2″	65	65	157	280	26.5	118	84	5.33
3″	80	80	176	280	30	118	98	7.82
4″	100	100	212	280	36	144	125	16.35
